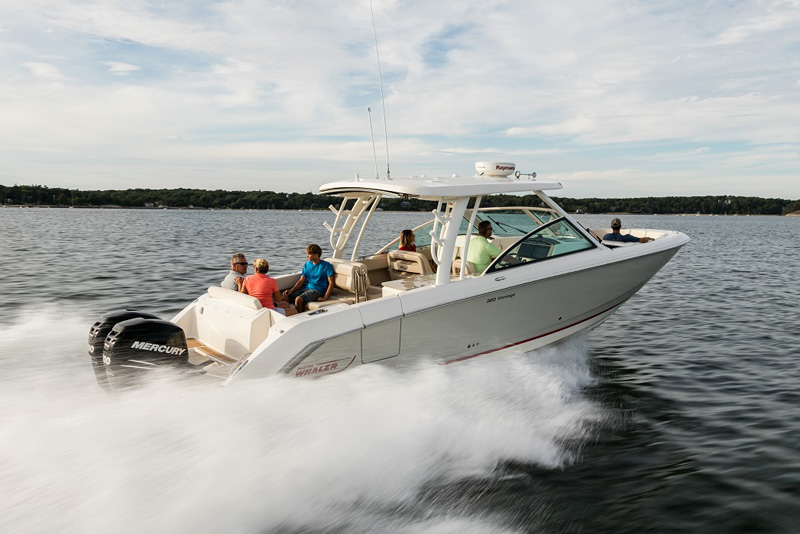

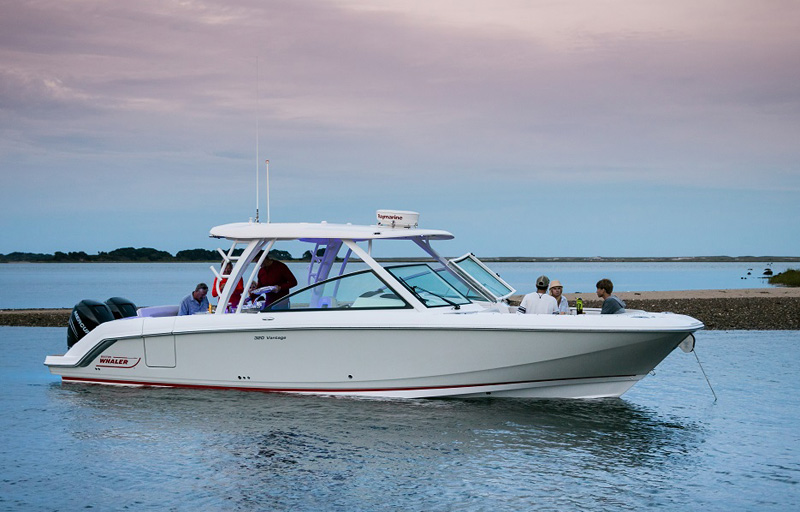

New 320 Vantage Hull 2024 Model

Dual Mercury V8 300 XL Verado Black Engines

Priced from:  £ P.O.A.


Cutting-edge features, great capacity and easy adaptability are hallmarks of the dual-console 320 Vantage®, winner of the National Marine Manufacturers Association’s Innovation Award. Rock-solid control meets the ultimate in versatility and comfort with the many accessories and options the 320 provides. Serious fishing, joyful entertaining, day-long watersports or cruising and even a place to sneak in a nap or an overnight stay–the 320 is ready for your day. When the softest, safest ride meets the best equipped dual-console around, new possibilities become eminently possible. With Whaler, you can be confident to the core.

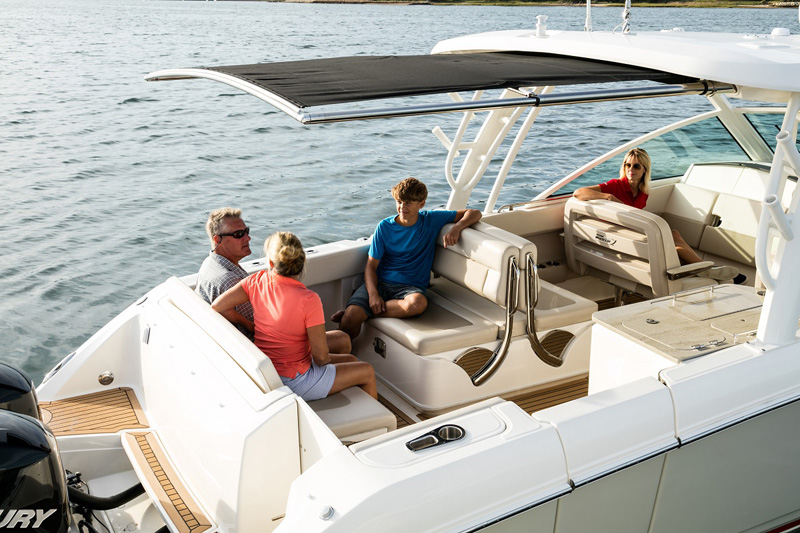

  • Uniquely convertible portside seating offers an array of configurations.

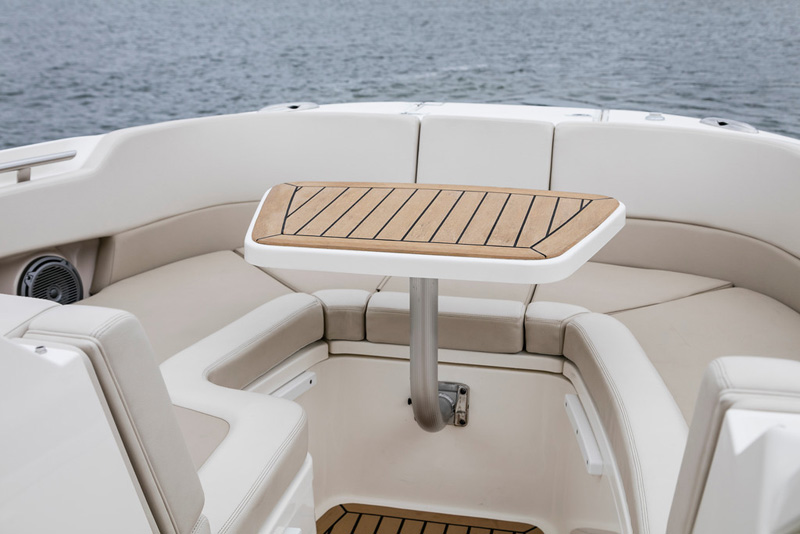

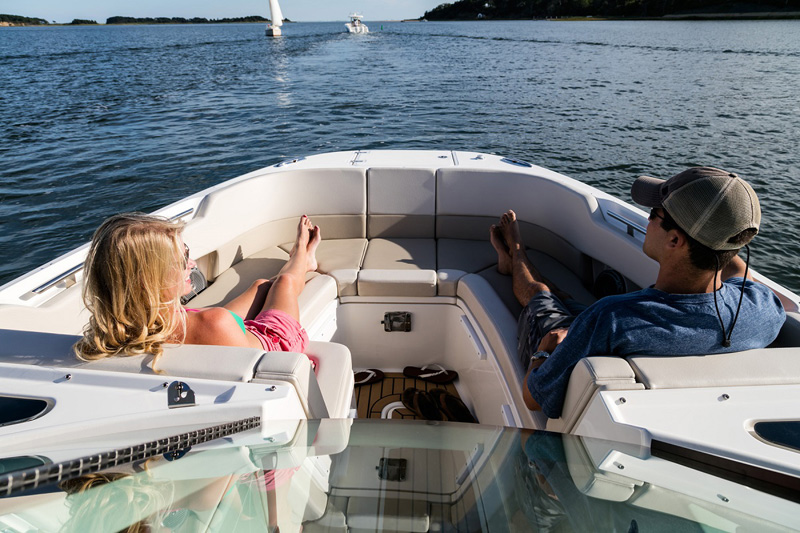

  • Spacious open bow features backrests, a large under-seat cooler, an optional bow table and more.
  • A cockpit utility center includes a sink, 18-gallon cooler and prep surface, plus optional grill and fridge.
  • Below deck, a cozy interior seating area offers a break from the weather.
  • Two touchscreens at the helm feature available Raymarine® electronics and VesselView display.


Boat Test Video

Features Video

Captains Report




  •  L.O.A.: 32′ 1″ (9.78 m) (on centerline, from bow to
    engine mounting location)
  •  L.O.A. (with platforms): 33’6″ (10.21 m)
  •  Beam: 10′ 4″ (3.15 m)
  •  Draft: 22″ (0.56 m)
  •  Weight (dry, no engine): 8,900 lbs (4,027 kg) (estimated)
  •  Maximum Weight Capacity: 4,300 lbs (1,950 kg)
  •  Swamped Capacity: 4,800 lbs (2,177 kg)(estimated)
  •  Persons Capacity: 12-14
  •  Maximum Horsepower: 700 hp (522 kW)
  •  Minimum Horsepower: 500 hp (372 kW)
  •  Deadrise at Transom: 21°
  •  Fuel Capacity: 275 gallons (1,041 L)
  •  Water Capacity: 30 gallons (113.5 L)
  •  Waste Capacity: 6.5 gallons (24.6 L)
  •  Maximum Engine Weight: 1,400 lbs (635 kg)
  •  Transom Height: 25″ (0.63 m)
  •  Bridge Clearance with Hardtop: 8′ 4″ (estimated)
  •  Bridge Clearance with radar: 9′ 6″ (estimated)

All hardware 316-L stainless steel
All rails welded 316-L stainless steel


8” Cleats
10” stainless steel pop-up cleats – (2) bow, (2)
stern with stainless steel hawse pipes, (2) spring
28” interior freeboard
Anchor storage
Anchor windlass with 200’ of rode, chain and
Bow and stern eyes
Cockpit coaming bolsters
Cockpit courtesy lights (dual color blue/white)
Drink holders (stainless steel)
Extended integral swim platform with stainless
steel ladder and grab rail
Grab rails (stainless steel)
Hawse pipes with drink holders (2), stern (stainless
Heavy-duty rub rail

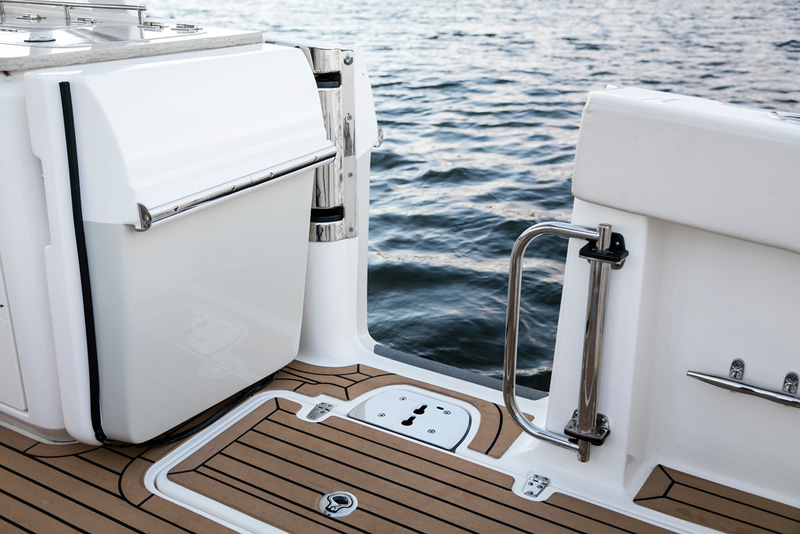

Molded fiberglass starboard dive/boarding door
with removable stainless steel dive ladder
Motorwell drains (2)
Rod holders, transom mounted (stainless steel)
Self-bailing cockpit sole
Stainless steel thru hull anchor roller davit
Transom door with stainless steel latch


Grab rail, located on centerline (stainless steel)
Mold in non-skid
Navigation light
Rod holders (4)
Tow bit (deleted w/fishing package)
Welded aluminum integrated frame with tempered
glass windshield with stainless steel top


Bank of drawers
Battery switch panel
Built-in storage
Cutting board
Dedicated trashcan storage
Drink holders (stainless steel)
Grab rail (stainless steel)
Insulated livewell/cooler (18 gallons)
Outboard fiddle rail
Sink with pull out sprayer
Solid surface countertop


12-V receptacle
Bow bolster
Bow cushions with backrests
Bow walkthrough block off panel
Drink holders (4) – stainless steel
Fiberglass lids with latches
Folding armrests, port and starboard
Forward side rails (welded stainless steel)
Forward step to bow
Molded-in insulated cooler on centerline
Recessed storage/cup holder compartment


Convertible berth
Dash visor
Fold-up table
Lighting – Blue accent
Lighting – Interior light
Lockable console door
Molded fiberglass console liner
Molded fiberglass entry door
Opening air vent in port and starboard compartments
for natural airflow
Rod storage
Skylight; tinted
Storage hooks (stainless steel)
Storage locker
Storage underneath seating
USB/Aux inputs
Wood flooring
Wood grain storage cabinets


Access panel to electronics
Cast stainless steel steering wheel with urethane
Courtesy light
Dash visor
Decorative flooring
Drink holders (2) (stainless steel)
Electronics mounting surface
Flip-down teak bench seat above porcelain head
Flip-up entry step
Helm and companion footrests
Instrumentation and elevated electrical switch
panel with circuit breaker protection
Interior light
Lockable entry door
Molded fiberglass console liner
Molded fiberglass entry door
Opening air vents in port and starboard compartments
for natural air flow
Porcelain VacuFlush® toilet, holding tank, overboard
discharge and dockside pump-out
Pull-out sink/shower sprayer
Skylight, tinted and frosted
Solid surface countertop
Storage hooks (stainless steel)
Trash receptacle
Windshield wiper (port and starboard)
Wood grain storage cabinets


Bow seating area with lounge backrests and armrests,
port and starboard
Deluxe custom helm seat with electric high/low
Deluxe swivel double port helm seating with 4
position indexing rotating stops
Double convertible port lounge seat with storage
(not available with Deluxe Prep Center with
Fold-out stern seat with elevated backrest


Bow anchor locker with drain
Captain’s pocket storage below the dash
Cockpit storage center
Head storage compartment
Bow storage lockers, port and starboard drains
Storage forward of helm on console
Storage under port console convertible berth
Storage under port lounge
Under gunnel storage shelves


250 CXL L6 DTS dual Mercury Verado FourStroke
engines with hydraulic power steering
285-gallon fuel tank
Automatic bilge pumps
Dual battery trays with switch
Electric horn
Electric trim tabs with indicator
Engine fuel/water separators
Freshwater system (30 gallons) with bow and
stern sprayers
LED navigation lights
Shore power with single 30 AMP charger and
galvanic isolator
Stainless steel propellers
Stereo – Fusion® AM/FM with waterproof speakers
(6) and MP3/USB inputs (Fusion® Bluetooth
Tilt steering
Transducer mount area
Variable running surface
Vessel View 4” display (network connections to
Raymarine with Navigation Package)


Download the full pdf specification sheet here.
Email us for current lead times.
